Cilindro hidráulico soldado

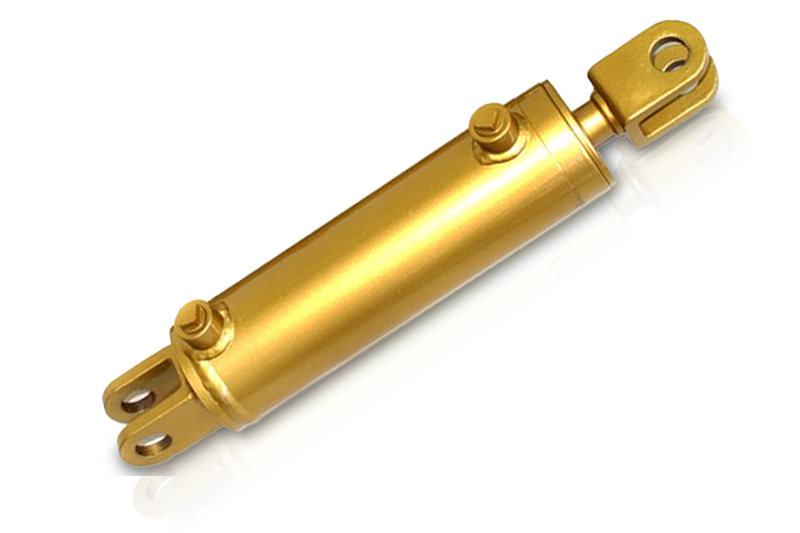

Cilindro hidráulico soldado Serie 600
Modelo: serie 600
2" to 5" dimensiones del orificio, 3000PSI
Colores
Nuestros cilindros soldados pueden tener cubierta color negra, gris y roja.
Diseño y montaje
Está diseñado con un par de hoyos al final del cilindro hidráulico soldado, así es que se puede agregar tornillos.
Materiales
- Todas las partes clave de nuestro cilindro hidráulico soldado están hechas de materias primas de la mejor calidad.
- Tanto la cabeza cilíndrica como el pistón de nuestro cilindro hidráulico soldado están hechas de hierro dúctil de alto grado.
- El barril cilíndrico es un tubo afilado frío internamente a punto.
- El vástago del pistón y la culata del cilindro están hechos de acero cromado C45.
- La tapa del cilindro es de acero C1045.
- El sello de la cabeza del cilindro es una U-taza de poliuretano y el sello del pistón está hecho de uretano.
- Las varas limpiaparabrisas están hechas de poliuretano.
Información dimensional (Unidades: pulgadas)
| Ver el dibujo | |||||||||||||
| No. de la parte | Calibre | Vástago | Retráctil | Pistón | Pared | D | LP | LW | LN | EP | HP | Puerto | Peso (LBS) |
| 62004 | 2" | 1-1/4" | 14.25" | 4" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 12.79 |
| 62006 | 2" | 1-1/4" | 16.25" | 6" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 14.56 |
| 62008 | 2" | 1-1/4" | 18.25" | 8" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 16.32 |
| 62010 | 2" | 1-1/4" | 20.25" | 10" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 17.86 |
| 62012 | 2" | 1-1/4" | 22.25" | 12" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 19.4 |
| 62014 | 2" | 1-1/4" | 24.25" | 14" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 21.17 |
| 62016 | 2" | 1-1/4" | 26.25" | 16" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 22.93 |
| 62018 | 2" | 1-1/4" | 28.25" | 18" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 24.48 |
| 62020 | 2" | 1-1/4" | 30.25" | 20" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 26.24 |
| 62024 | 2" | 1-1/4" | 34.25" | 24" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 29.55 |
| 62028 | 2" | 1-1/4" | 38.25" | 28" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 32.85 |
| 62030 | 2" | 1-1/4" | 40.25" | 30" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 34.62 |
| 62032 | 2" | 1-1/4" | 42.25" | 32" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 36.16 |
| 62034 | 2" | 1-1/4" | 44.25" | 34" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 37.93 |
| 62036 | 2" | 1-1/4" | 46.25" | 36" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 36.69 |
| 62504 | 2.5" | 1-1/2" | 14.25" | 4" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 16.98 |
| 62506 | 2.5" | 1-1/2" | 16.25" | 6" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 19.18 |
| 62508 | 2.5" | 1-1/2" | 18.25" | 8" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 21.39 |
| 62510 | 2.5" | 1-1/2" | 20.25" | 10" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 23.37 |
| 62512 | 2.5" | 1-1/2" | 22.25 | 12" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 25.58 |
| Ver el dibujo | |||||||||||||
| No. de la parte | Calibre | Vástago | Retráctil | Pistón | Pared | D | LP | LW | LN | EP | HP | Puerto | Peso (LBS) |
| 62514 | 2.5" | 1-1/2" | 24.25" | 14" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 27.78 |
| 62516 | 2.5" | 1-1/2" | 26.25" | 16" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 29.77 |
| 62518 | 2.5" | 1-1/2" | 28.25" | 18" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 31.97 |
| 62520 | 2.5" | 1-1/2" | 30.25" | 20" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 34.18 |
| 62524 | 2.5" | 1-1/2" | 34.25" | 24" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 38.37 |
| 62528 | 2.5" | 1-1/2" | 38.25" | 28" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 42.56 |
| 62530 | 2.5" | 1-1/2" | 40.25" | 30" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 44.76 |
| 62532 | 2.5" | 1-1/2" | 42.25" | 32" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 46.97 |
| 62534 | 2.5" | 1-1/2" | 44.25" | 34" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 48.95 |
| 62536 | 2.5" | 1-1/2" | 46.25" | 36" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 51.16 |
| 63004 | 3" | 1-1/2" | 14.25" | 4" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/3NPT | 21.83 |
| 63006 | 3" | 1-1/2" | 16.25" | 6" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 24.26 |
| 63008 | 3" | 1-1/2" | 18.25" | 8" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 26.9 |
| 63010 | 3" | 1-1/2" | 20.25" | 10" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 29.11 |
| 63012 | 3" | 1-1/2" | 22.25" | 12" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 31.53 |
| 63014 | 3" | 1-1/2" | 24.25" | 14" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 33.96 |
| 63016 | 3" | 1-1/2" | 26.25" | 16" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 36.6 |
| 63018 | 3" | 1-1/2" | 28.25" | 18" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 39.03 |
| 63020 | 3" | 1-1/2" | 30.25" | 20" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 41.45 |
| 63024 | 3" | 1-1/2" | 34.25" | 24" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 46.31 |
| 63028 | 3" | 1-1/2" | 38.25" | 28" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 51.16 |
| 63030 | 3" | 1-1/2" | 40.25" | 30" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 53.58 |
| 63032 | 3" | 1-1/2" | 42.25" | 32" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 56.23 |
| 63034 | 3" | 1-1/2" | 44.25" | 34" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 58.65 |
| 63036 | 3" | 1-1/2" | 46.25" | 36" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 61.08 |
| 63504 | 3.5" | 1-3/4" | 14.25" | 4" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 26.24 |
| 63506 | 3.5" | 1-3/4" | 16.25" | 6" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 29.33 |
| 63508 | 3.5" | 1-3/4" | 18.25" | 8" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 32.41 |
| 63510 | 3.5" | 1-3/4" | 20.25" | 10" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 35.5 |
| 63512 | 3.5" | 1-3/4" | 22.25" | 12" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 38.59 |
| 63514 | 3.5" | 1-3/4" | 24.25" | 14" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 41.67 |
| 63516 | 3.5" | 1-3/4" | 26.25" | 16" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 44.76 |
| 63518 | 3.5" | 1-3/4" | 28.25" | 18" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 48.07 |
| 63520 | 3.5" | 1-3/4" | 30.25" | 20" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 51.16 |
| 63524 | 3.5" | 1-3/4" | 34.25" | 24" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 57.33 |
| 63528 | 3.5" | 1-3/4" | 38.25" | 28" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 63.5 |
| 63530 | 3.5" | 1-3/4" | 40.25" | 30" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 66.59 |
| 63532 | 3.5" | 1-3/4" | 42.25" | 32" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 69.9 |
| Ver el dibujo | |||||||||||||
| No. de la parte | Calibre | Vástago | Retráctil | Pistón | Pared | D | LP | LW | LN | EP | HP | Puerto | Peso (LBS) |
| 63534 | 3.5" | 1-3/4" | 44.25" | 34" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1.125" | 1.89" | 1/2NPT | 72.99 |
| 63536 | 3.5" | 1-3/4" | 46.25" | 36" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1.125" | 1.89" | 1/2NPT | 76.07 |
| 64004 | 4" | 1-3/4" | 14.25" | 4" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 30.65 |
| 64006 | 4" | 1-3/4" | 16.25" | 6" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 34.4 |
| 64008 | 4" | 2" | 18.25" | 8" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 39.25 |
| 64010 | 4" | 2" | 20.25" | 10" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 42.12 |
| 64012 | 4" | 2" | 22.25" | 12" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 46.08 |
| 64014 | 4" | 2" | 24.25" | 14" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 50.05 |
| 64016 | 4" | 2" | 26.25" | 16" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 53.8 |
| 64018 | 4" | 2" | 28.25" | 18" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 57.77 |
| 64020 | 4" | 2" | 30.25" | 20" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 61.52 |
| 64024 | 4" | 2" | 34.25" | 24" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 69.46 |
| 64028 | 4" | 2" | 38.25" | 28" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 77.18 |
| 64030 | 4" | 2" | 40.25" | 30" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 81.14 |
| 64032 | 4" | 2" | 42.5" | 32" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 84.89 |
| 64034 | 4" | 2" | 44.25" | 34" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 88.86 |
| 64036 | 4" | 2" | 46.25" | 36" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 92.61 |
| 65004 | 5" | 2-1/2" | 16.25" | 4" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 63.95 |
| 65006 | 5" | 2-1/2" | 18.25" | 6" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 68.36 |
| 65008 | 5" | 2-1/2" | 20.25" | 8" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 72.77 |
| 65010 | 5" | 2-1/2" | 22.25" | 10" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 77.18 |
| 65012 | 5" | 2-1/2" | 24.25" | 12" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 81.59 |
| 65014 | 5" | 2-1/2" | 26.25" | 14" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 86 |
| 65016 | 5" | 2-1/2" | 28.25" | 16" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 90.41 |
| 65018 | 5" | 2-1/2" | 30.25" | 18" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 94.82 |
| 65020 | 5" | 2-1/2" | 32.25" | 20" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 99.23 |
| 65024 | 5" | 2-1/2" | 36.25" | 24" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 108.05 |
| 65028 | 5" | 2-1/2" | 40.25" | 28" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 116.87 |
| 65030 | 5" | 2-1/2" | 42.25" | 30" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 121.28 |
| 65032 | 5" | 2-1/2" | 44.25" | 32" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 125.69 |
| 65034 | 5" | 2-1/2" | 46.25" | 34" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 130.1 |
| 64036 | 5" | 2-1/2" | 48.25" | 36" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 134.51 |
