Cilindro hidráulico soldado

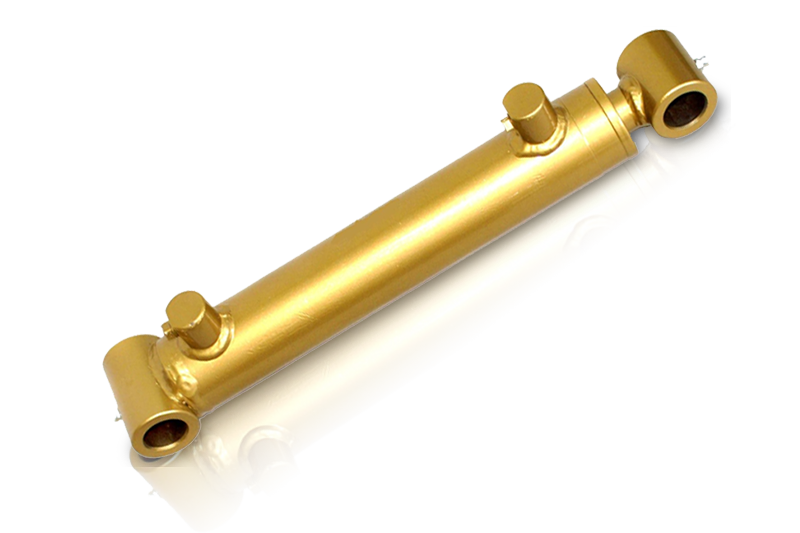

Cilindro hidráulico soldado Serie 700
Modelo: Serie 700
11/2" to 5" dimensiones del orificio, 3000PSI
Colores
Nuestros cilindros hidráulicos soldados están disponibles en tres colores, negro, gris y rojo.
Montaje
se monta con clavijas.
Materiales
- Materiales para hacer el Cilindro hidráulico soldado Serie 700
- Tanto la cabeza cilíndrica como el pistón de nuestro cilindro hidráulico soldado están hechas de hierro dúctil de alto grado.
- El barril cilíndrico es un tubo afilado frío internamente a punto.
- Tanto el vástago del pistón y las tapas son de acero C1045.
- El sello de la cabeza del cilindro es una taza U de poliuretano, y la junta del pistón es de caucho de uretano.
- El limpiador de la barra está hecha de poliuretano.
Información dimensional (Unidades: pulgadas)
| Ver el dibujo | |||||||||||||
| No. de la parte | Calibre | Vástago | Retráctil | Pistón | Pared | D | H | EL | HL | EP | HP | Puerto | Peso (LBS) |
| 71504 | 1.5" | 1" | 12" | 4" | 0.2" | 0.77" | 1.5" | 2.5" | 2.25" | 0.75" | 1.89" | 1/4NPT | 9.04 |
| 71506 | 1.5" | 1" | 14" | 6" | 0.2" | 0.77" | 1.5" | 2.5" | 2.25" | 0.75" | 1.89" | 1/4NPT | 10.14 |
| 71508 | 1.5" | 1" | 16" | 8" | 0.2" | 0.77" | 1.5" | 2.5" | 2.25" | 0.75" | 1.89" | 1/4NPT | 11.47 |
| 71510 | 1.5" | 1" | 18" | 10" | 0.2" | 0.77" | 1.5" | 2.5" | 2.25" | 0.75" | 1.89" | 1/4NPT | 12.79 |
| 72008 | 1.5" | 1-1/4" | 16" | 8" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 13.45 |
| 72010 | 1.5" | 1-1/4" | 18" | 10" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 15.21 |
| 72012 | 1.5" | 1-1/4" | 20" | 12" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 16.98 |
| 72014 | 1.5" | 1-1/4" | 22" | 14" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 18.74 |
| 72016 | 1.5" | 1-1/4" | 24" | 16" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 20.51 |
| 72018 | 1.5" | 1-1/4" | 26" | 18" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 22.27 |
| 72020 | 1.5" | 1-1/4" | 28" | 20" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 24.03 |
| 72024 | 1.5" | 1-1/4" | 32" | 24" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 27.58 |
| 72028 | 1.5" | 1-1/4" | 36" | 28" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 31.09 |
| 72030 | 1.5" | 1-1/4" | 38" | 30" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 32.85 |
| 72032 | 1.5" | 1-1/4" | 40" | 32" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 34.84 |
| 72036 | 1.5" | 1-1/4" | 44" | 38" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 38.37 |
| 72040 | 1.5" | 1-1/4" | 48" | 40" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 41.9 |
| 72048 | 1.5" | 1-1/4" | 56" | 48" | 0.2" | 1.02" | 1.75" | 3" | 2.5" | 1" | 1.89" | 1/4NPT | 48.95 |
| 72508 | 1.5" | 1-1/2" | 16" | 8" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/4NPT | 19.85 |
| 72510 | 1.5" | 1-1/2" | 18" | 10" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/4NPT | 21.83 |
| Ver dibujo | |||||||||||||
| No. de la parte | Calibre | Vástago | Retráctil | Pistón | Pared | D | H | EL | HL | EP | HP | Puerto | Peso (LBS) |
| 72512 | 2.5" | 1-1/2" | 20" | 12" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/2NPT | 24.03 |
| 72514 | 2.5" | 1-1/2" | 22" | 14" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/2NPT | 28.24 |
| 72516 | 2.5" | 1-1/2" | 24" | 16" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/2NPT | 28.44 |
| 72518 | 2.5" | 1-1/2" | 26" | 18" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/2NPT | 30.65 |
| 72520 | 2.5" | 1-1/2" | 28" | 20" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/2NPT | 32.85 |
| 72524 | 2.5" | 1-1/2" | 32" | 24" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/2NPT | 37.26 |
| 72528 | 2.5" | 1-1/2" | 36" | 28" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/2NPT | 41.45 |
| 72530 | 2.5" | 1-1/2" | 38" | 30" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/2NPT | 43.66 |
| 72532 | 2.5" | 1-1/2" | 40" | 32" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/2NPT | 45.86 |
| 72536 | 2.5" | 1-1/2" | 44" | 36" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/2NPT | 50.27 |
| 72540 | 2.5" | 1-1/2" | 48" | 40" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/3NPT | 54.68 |
| 72548 | 2.5" | 1-1/2" | 56" | 48" | 0.2" | 1.02" | 1.75" | 3.25" | 2.5" | 1" | 1.89" | 1/2NPT | 63.28 |
| 73008 | 3" | 1-1/2" | 16" | 8" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 24.7 |
| 73010 | 3" | 1-1/2" | 18" | 10" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 27.12 |
| 73012 | 3" | 1-1/2" | 20" | 12" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 29.55 |
| 73014 | 3" | 1-1/2" | 22" | 14" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 31.97 |
| 73016 | 3" | 1-1/2" | 24" | 16" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 34.4 |
| 73018 | 3" | 1-1/2" | 26" | 18" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 36.82 |
| 73020 | 3" | 1-1/2" | 28" | 20" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 39.25 |
| 73024 | 3" | 1-1/2" | 32" | 24" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 44.1 |
| 73028 | 3" | 1-1/2" | 36" | 28" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 48.95 |
| 73030 | 3" | 1-1/2" | 38" | 30" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 51.38 |
| 73032 | 3" | 1-1/2" | 40" | 32" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 53.58 |
| 73036 | 3" | 1-1/2" | 44" | 36" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 58.43 |
| 73040 | 3" | 1-1/2" | 48" | 40" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 63.28 |
| 73048 | 3" | 1-1/2" | 56" | 48" | 0.25" | 1.02" | 1.75" | 3.75" | 2.5" | 1" | 1.89" | 1/2NPT | 72.99 |
| 73508 | 3.5" | 1-3/4" | 18" | 8" | 0.25" | 1.27" | 2" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 32.63 |
| 73510 | 3.5" | 1-3/4" | 20" | 10" | 0.25" | 1.27" | 2" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 35.72 |
| 73512 | 3.5" | 1-3/4" | 22" | 12" | 0.25" | 1.27" | 2" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 38.81 |
| 73514 | 3.5" | 1-3/4" | 24" | 14" | 0.25" | 1.27" | 2" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 41.67 |
| 73516 | 3.5" | 1-3/4" | 26" | 16" | 0.25" | 1.27" | 2" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 44.76 |
| 73518 | 3.5" | 1-3/4" | 28" | 18" | 0.25" | 1.27" | 2" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 47.63 |
| 73520 | 3.5" | 1-3/4" | 30" | 20" | 0.25" | 1.27" | 2" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 50.72 |
| 73524 | 3.5" | 1-3/4" | 34" | 24" | 0.25" | 1.27" | 2" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 56.67 |
| 73528 | 3.5" | 1-3/4" | 38" | 28" | 0.25" | 1.27" | 2" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 62.62 |
| 73530 | 3.5" | 1-3/4" | 40" | 30" | 0.25" | 1.27" | 2" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 65.71 |
| 73532 | 3.5" | 1-3/4" | 42" | 32" | 0.25" | 1.27" | 2" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 68.8 |
| 73536 | 3.5" | 1-3/4" | 46" | 36" | 0.25" | 1.27" | 2" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 74.75 |
| Ver dibujo | |||||||||||||
| No. de la parte | Calibre | Vástago | Retráctil | Pistón | Pared | D | H | EL | HL | EP | HP | Puerto | Peso (LBS) |
| 73540 | 3.5" | 1-3/4" | 50" | 40" | 0.2" | 2" | 1.75" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 80.7 |
| 73548 | 3.5" | 1-3/4" | 58" | 48" | 0.2" | 2" | 1.75" | 4.25" | 2.75" | 1.125" | 1.89" | 1/2NPT | 92.61 |
| 74008 | 4" | 2" | 18" | 8" | 0.2" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 40.79 |
| 74010 | 4" | 2" | 20" | 10" | 0.2" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 44.54 |
| 74012 | 4" | 2" | 22" | 12" | 0.2" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 48.29 |
| 74014 | 4" | 2" | 24" | 14" | 0.2" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 51.82 |
| 74016 | 4" | 2" | 26" | 16" | 0.2" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 55.57 |
| 74018 | 4" | 2" | 28" | 18" | 0.2" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 59.09 |
| 74020 | 4" | 2" | 30" | 20" | 0.2" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 62.48 |
| 74024 | 4" | 2" | 34" | 24" | 0.2" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 70.12 |
| 74028 | 4" | 2" | 38" | 28" | 0.2" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 77.4 |
| 74030 | 4" | 2" | 40" | 30" | 0.2" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 81.14 |
| 74032 | 4" | 2" | 42" | 32" | 0.25" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 84.87 |
| 74036 | 4" | 2" | 46" | 36" | 0.25" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 91.95 |
| 74040 | 4" | 2" | 50" | 40" | 0.25" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 99.23 |
| 74048 | 4" | 2" | 58" | 48" | 0.25" | 2.5" | 1.75" | 4.75" | 2.75" | 1.125" | 1.89" | 1/2NPT | 114 |
| 75008 | 5" | 2-1/2" | 20" | 8" | 0.25" | 1.02" | 2.76" | 3.25" | 2.125" | 1.125" | 1.89" | 1/2NPT | 71.88 |
| 75010 | 5" | 2-1/2" | 22" | 10" | 0.25" | 1.02" | 2.76" | 3.25" | 2.5" | 1.5" | 2.5" | 1/2NPT | 76.07 |
| 75012 | 5" | 2-1/2" | 24" | 12" | 0.25" | 1.02" | 2.76" | 3.25" | 2.5" | 1.5" | 2.5" | 1/2NPT | 80.48 |
| 75014 | 5" | 2-1/2" | 26" | 14" | 0.25" | 1.02" | 2.76" | 3.25" | 2.5" | 1.5" | 2.5" | 1/2NPT | 84.67 |
| 75016 | 5" | 2-1/2" | 28" | 16" | 0.25" | 1.02" | 2.76" | 3.25" | 2.5" | 1.5" | 2.5" | 1/2NPT | 89.08 |
| 75018 | 5" | 2-1/2" | 30" | 18" | 0.25" | 1.02" | 2.76" | 3.25" | 2.5" | 1.5" | 2.5" | 1/2NPT | 93.49 |
| 75020 | 5" | 2-1/2" | 32" | 20" | 0.25" | 1.02" | 2.76" | 3.25" | 2.5" | 1.5" | 2.5" | 1/2NPT | 97.68 |
| 75024 | 5" | 2-1/2" | 36" | 24" | 0.25" | 1.02" | 2.76" | 3.25" | 2.5" | 1.5" | 2.5" | 1/2NPT | 106.28 |
| 75028 | 5" | 2-1/2" | 40" | 28" | 0.25" | 1.02" | 2.76" | 3.25" | 2.5" | 1.5" | 2.5" | 1/2NPT | 115.1 |
| 75030 | 5" | 2-1/2" | 42" | 30" | 0.25" | 1.02" | 2.76" | 3.25" | 2.5" | 1.5" | 2.5" | 1/2NPT | 119.29 |
| 75032 | 5" | 2-1/2" | 44" | 32" | 0.25" | 1.27" | 2.76" | 3.25" | 2.5" | 1.5" | 2.5" | 1/2NPT | 123.7 |
| 75036 | 5" | 2-1/2" | 48" | 36" | 0.25" | 1.27" | 2.76" | 3.25" | 2.5" | 1.5" | 2.5" | 1/2NPT | 132.3 |
| 75040 | 5" | 2-1/2" | 52" | 40" | 0.25" | 1.27" | 2.76" | 3.25" | 2.5" | 1.5" | 2.5" | 1/2NPT | 140.9 |
| 75048 | 5" | 2-1/2" | 60" | 48" | 0.25" | 1.27" | 2.76" | 3.25" | 2.5" | 1.5" | 2.5" | 1/2NPT | 158.1 |
Nota: La lista anterior es la información dimensional típica de nuestros cilindros hidráulicos.
Como productores profesionales de cilindros hidráulicos con base en China, también podemos producir muchos otros productos hidráulicos como unidades de potencia hidráulica DC, unidades de potencia hidráulica AC, cilindros con vástago, cilindros con pistones y más. Debido a su calidad confiable y precios competitivos, estos cilindros hidráulicos y unidades de potencia han sido exportados a Estados Unidos, Japón, Corea, Australia y más. Agradecemos su interés en nuestros productos. Para información más detallada, por favor llámenos. Aqui en Wantong Hydraulic Power Machinery Company esperamos poder trabajar con usted.
